78xx , 79xx Voltage Regulator
Circuits Divers / Various Circuits

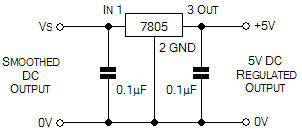

| Type Number | Regulation Voltage | Maximum Current | Mini Input Voltage | Max Input Voltage |
| 78L | +30V | |||
| 78L05 | +5V | 0.1A | +7V | |
| 78L12 | +12V | 0.1A | +14.5V | |
| 78L15 | +15V | 0.1A | +17.5V | |
| UA78L | ||||
| 78L02 | +2.6V | 0.1A | +4.75V | +20V |
| 78L05 | +5V | 0.1A | +7V | +20V |
| 78L06 | +6.2V | 0.1A | +8.5V | +20V |
| 78L08 | +8V | 0.1A | +10.5V | +23V |
| 78L09 | +9V | 0.1A | +11.5V | +24V |
| 78L10 | +10V | 0.1A | +12.5V | +25V |
| 78L12 | +12V | 0.1A | +14.5V | +27V |
| 78L15 | +15V | 0.1A | +17.5V | +30V |
| LM78L | +30V | |||
| 78L05 | +5V | 0.1A | +7V | |
| 78L62 | +6.2V | 0.1A | +7.9V | |
| 78L82 | +8.2V | 0.1A | 9.9V | |
| 78L09 | +9V | 0.1A | +10.7V | |
| 78L12 | +12V | 0.1A | +14.5V | |
| 78L15 | +15V | 0.1A | +17.5V | |
| 78M | +35V | |||
| 78M05 | +5V | 0.5A | +7V | |
| 78M12 | +12V | 0.5A | +14.5V | |
| 78M15 | +15V | 0.5A | +17.5V | |
| UA78M | +30V | |||
| 78M33 | +3.3V | 0.5A | +5.3V | |
| 78M05 | +5V | 0.5A | +7V | |
| 78M06 | +6V | 0.5A | +8V | |
| 78M08 | +8V | 0.5A | +10.5V | |
| 78M09 | +9V | 0.5A | +10.7V | |
| 78M10 | +10V | 0.5A | +12.5V | |
| 78M12 | +12V | 0.5A | +14.5V | |
| 78xxT | +35V | |||
| 7805 | +5V | 1A | +7V | |
| 7806 | +6V | 1A | +8V | |
| 7808 | +8V | 1A | +10.5V | |
| 7812 | +12V | 1A | +14.5V | |
| 7815 | +15V | 1A | +17.5V | |
| 7824 | +24V | 1A | +26V | |
| UA78 | +38V | |||
| 7805 | +5V | 1A | +7V | |
| 7808 | +8V | 1A | +10.5V | |
| 7810 | +10V | 1A | +12.5V | |
| 7812 | +12V | 1A | +14.5V | |
| 7815 | +15V | 1A | +17.5V | |
| 7824 | +24V | 1A | +26V | |
| LM78 | +35V | |||
| 7805 | +5V | 1.5A | +7V | |
| 7812 | +12V | 1.5A | +14.5V | |
| 7815 | +15V | 1.5A | +17.5V | |
| L78xx | ||||
| 7805 | +5V | 1.5A | +7V | +35V |
| 7806 | +6V | 1.5A | +8V | +35V |
| 7808 | +8V | 1.5A | +10.5V | +35V |
| 7885 | +8.5V | 1.5A | +11V | +35V |
| 7809 | +9V | 1.5A | +10.7V | +35V |
| 7812 | +12V | 1.5A | +14.5V | +35V |
| 7815 | +15V | 1.5A | +17.5V | +35V |
| 7818 | +18V | 1.5A | +21V | +35V |
| 7820 | +20V | 1.5A | +23V | +40V |
| 7824 | +24V | 1.5A | +27V | +40V |
| 78S | ||||
| 78S05 | +5V | 2A | +8V | |
| 78S09 | +9V | 2A | +12V | |
| 78S12 | +12V | 2A | +15V | |
| 78S15 | +15V | 2A | +18V | |
| LM79 | -35V | |||
| 7905 | -5V | 1A | -7V | |
| 7906 | -6V | 1A | -9V | |
| 7908 | -8V | 1A | -10V | |
| 7909 | -9V | 1A | -11.5V | |
| 7910 | -10V | 1A | -12V | |
| 7912 | -12V | 1A | -15.5V | |
| 7915 | -15V | 1A | -18V | |
| 7918 | -18V | 1A | -22.5V | |
| 7924 | -24V | 1A | -27V | |
| 79xx | ||||
| 7905 | -5V | 1.5A | -7V | -25V |
| 7912 | -12V | 1.5A | -15.5V | -35V |
| 7915 | -15V | 1.5A | -23V | -35V |
| L79xx | ||||
| 7905 | -5V | 1.5A | -7V | -35V |
| 7906 | -6V | 1.5A | -9V | -35V |
| 7908 | -8V | 1.5A | -10V | -35V |
| 7909 | -9V | 1.5A | -11.5V | -35V |
| 7910 | -10V | 1.5A | -12V | -35V |
| 7912 | -12V | 1.5A | -15.5V | -35V |
| 7915 | -15V | 1.5A | -18V | -35V |
| 7918 | -18V | 1.5A | -22.5V | -35V |
| 7920 | -20V | 1.5A | -23V | -40V |
| 7924 | -24V | 1.5A | -27V | -40V |
